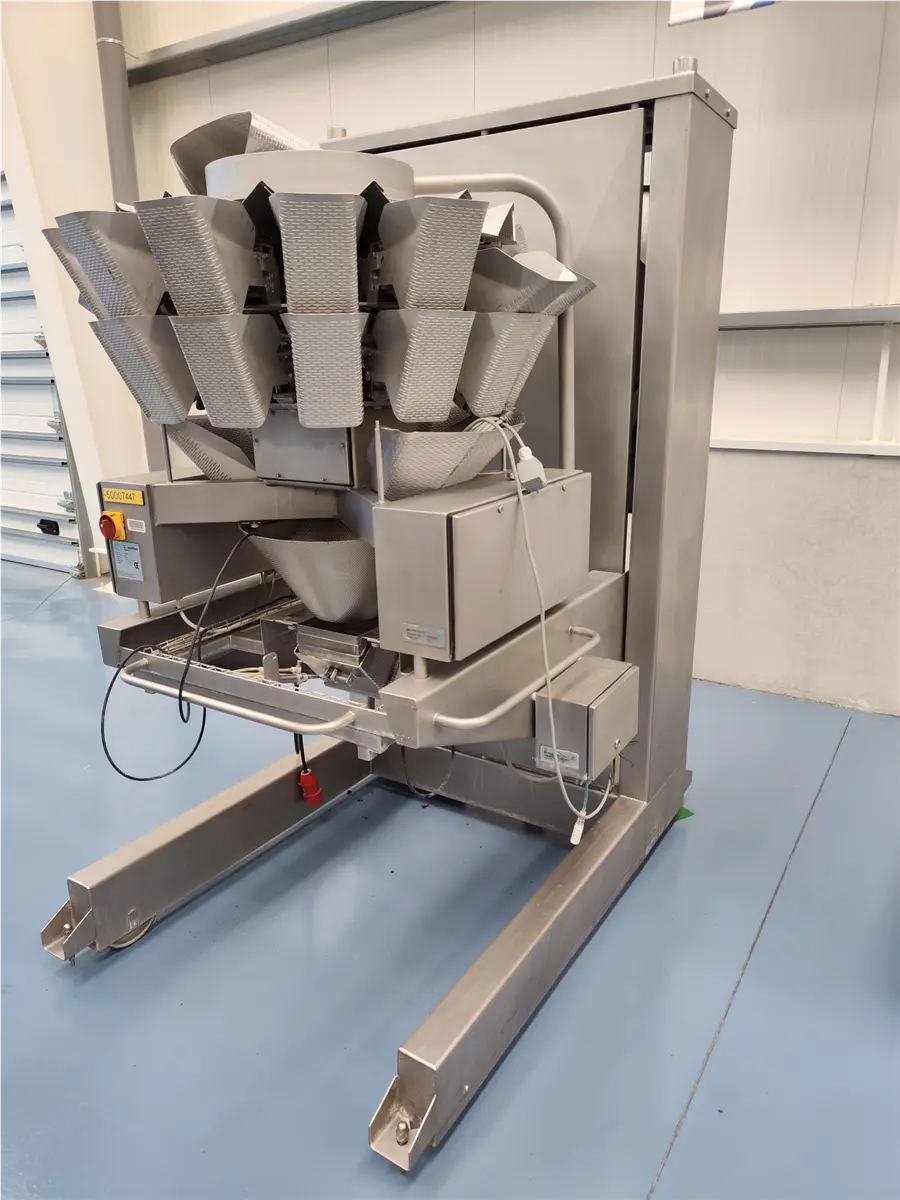

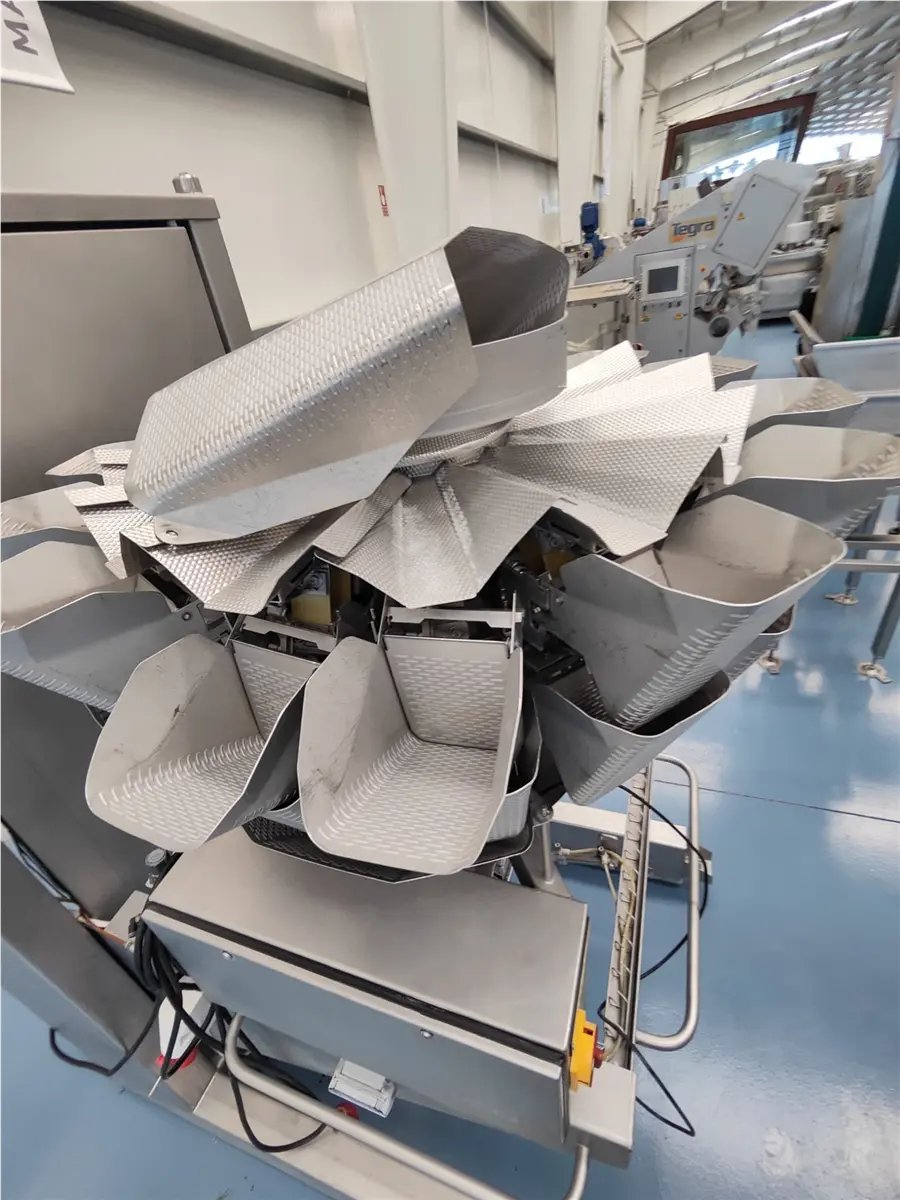

BILWINCO 14 HEADS WEIGHER

DESCRIPTION The BILWINCO DW60/14-D weighing machine is used for both food and non-food products. The DW60/14-D model is used for cold and/or wet foodstuffs. This machine consists of 14 identical weighing channels arranged in a geometric circle. Each weighing channel consists of a vibrating channel, a collecting vessel and a weighing vessel. The product is fed into the central vibrating cone at the top of the installation. The cone is connected to a weighing cell which registers the weight of the product fed into the central cone. If the weight is below the desired weight, a signal is given to the feeding system to feed in a larger quantity of product. The vibrating channel doses a specific quantity of product into the collection vessel: a fraction of the final nominal weight. When the weighing vessel is empty, the collecting vessel discharges the dosed partial portion. Features: Weighing range: 50 g-1000g Volume per portion: 3 litres max. Piece size: 75 x 75 x 40 mm (max.) ø 1.5 x 3 mm (min) Weight per piece: 80 grams per piece. Compressed air: 5-10 bar. Height adjustable head. 14 weighing cells. Output depends on product, weight of portion, and production conditions.
