Ref: 0000000196146

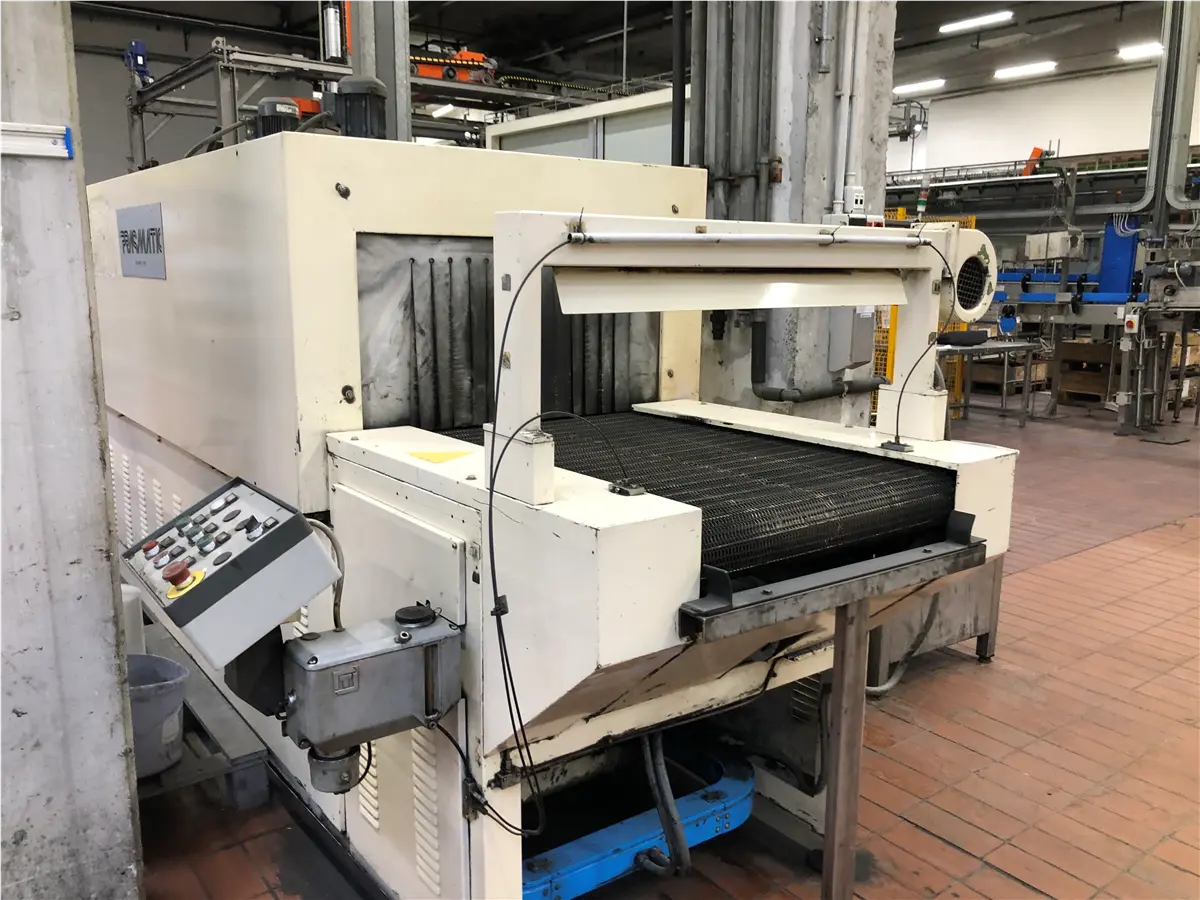

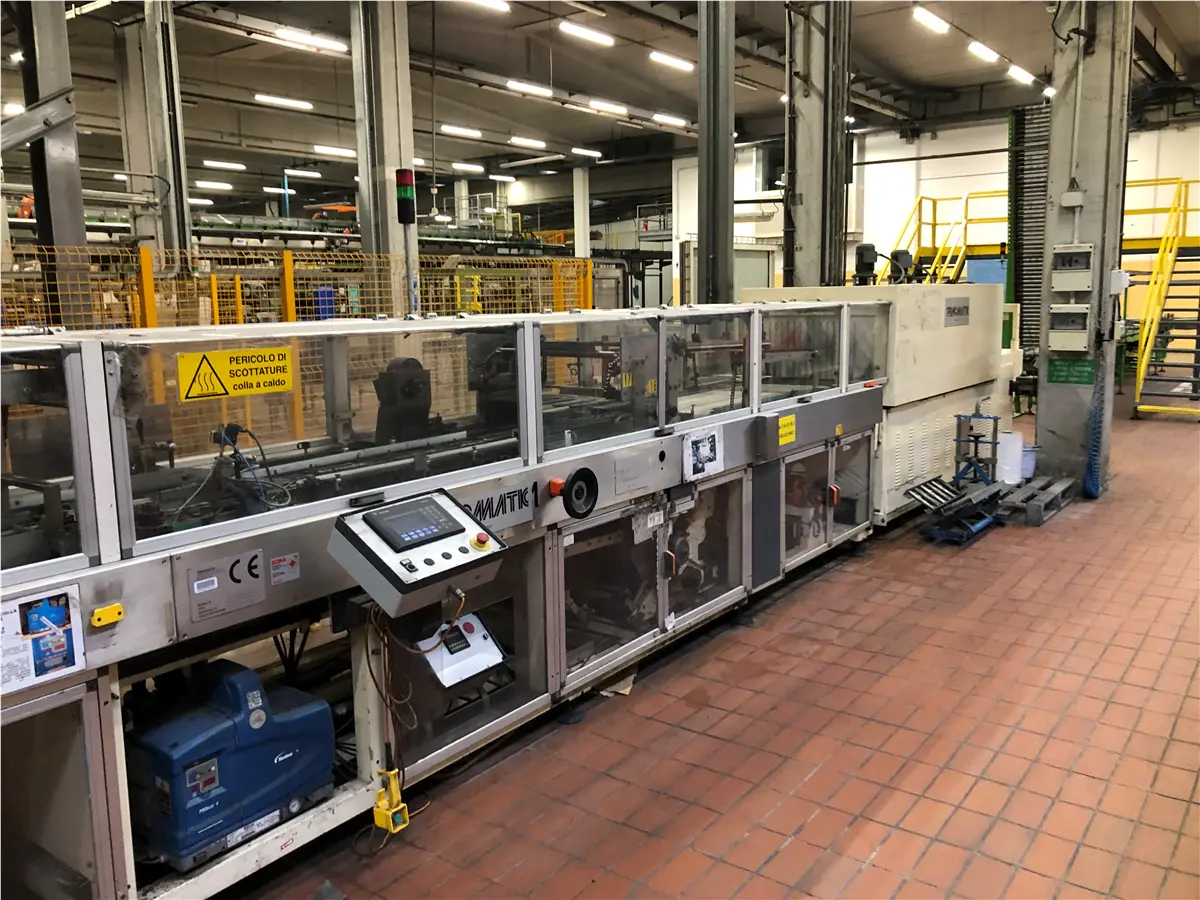

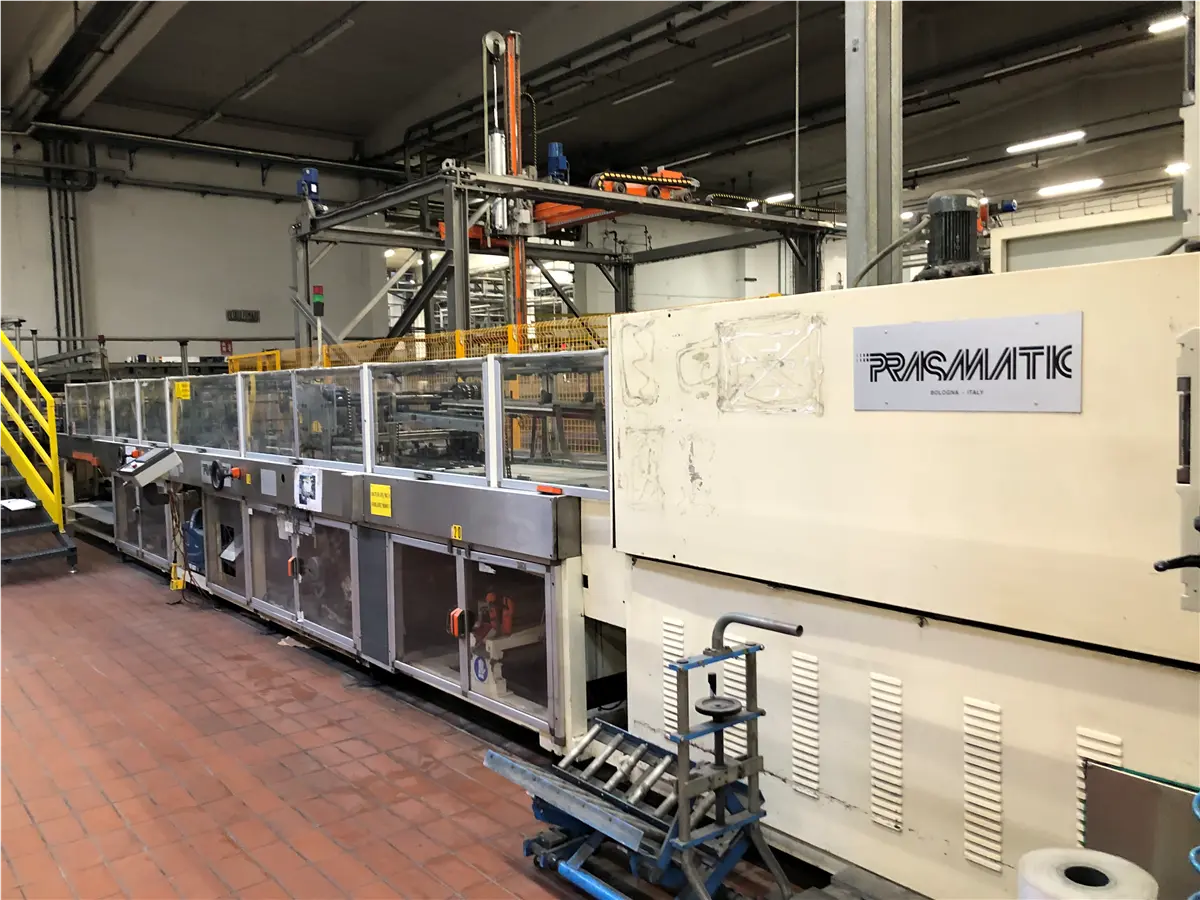

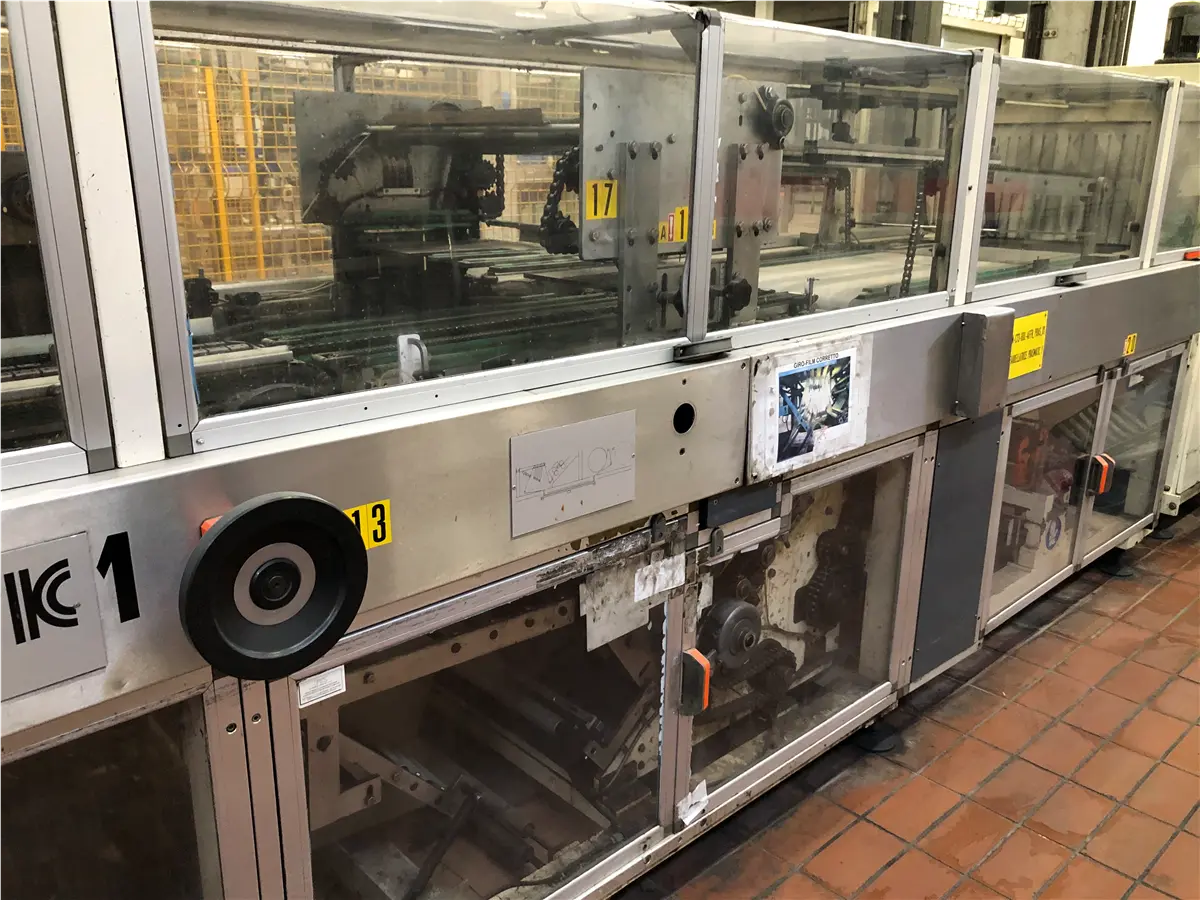

PRASMATIC WRAP-AROUND AND BOX FORMING MACHINE.

Are you interested?
Specifications

HEIGHT

2.70 m

INCLUDED

1.50 m

USEFUL WIDTH

0.00 m

LENGTH

7.50 m

WEIGHT

3200 Kg

MAKE

PRASMATIC

PRODUCTION

20 PACKAGE/MIN

MODEL

PM 13

VOLT

400 V-50 HZ

PRESSURE

6 BAR

MAX. POWER

51 KW / 69.4 CV

TYPE

CW

INCLUDED

NORDSON GLUE EQUIPMENT
DESCRIPTION The PM13 wrapping machine is the new generation of PRAS-MATIC machines and has all the technical features required for high-speed packaging with shrink film. The PM13, without sealing bar, uses a single lower reel from which, with a continuous movement and by means of a rotating knife, the polyethylene film sheet is cut to size and wrapped around the products to be packaged by means of four rotating bars. This operating principle enables very high operating speeds to be achieved, as it eliminates the limitations of conventional sealing bars. The unwinding, feeding and cutting mechanisms of the reel are electronically controlled. The PM 13 is designed for high speed shrink wrapping of: cans, PVC and PET bottles (either cup or petaloid base), jars, glass bottles, detergent and plastic bottles. CHARACTERISTICS: Package size: - Max. length: 500mm - Max. width: 360 mm - Max height: 360 mm Reel size: - External diameter: 500 mm - Inner diameter: 70 mm - Thickness: 40/80 microns. Cardboard tray dimensions: - Min: 150 x 200 - Max: 350 x 540 - Min. edge: 30 mm - Max edge: 100 mm Tray capacity: approx. 600 Production: 40 to 80 packs/min (depending on product characteristics)
